Branch

Overview

The Branch feature in WeSQL allows you to copy a database to current Wescale cluster or another Wescale cluster. This is particularly useful when you want to create a development database that mirrors your production environment. This guide explains how to use the Branch feature, including its commands and options.

General Syntax

The Branch command is an umbrella command with several subcommands (actions) that define specific operations within the workflow. Each action has its own options to control its behavior.

Branch -- <options> <action>

action := [Prepare | Start | Stop | SchemaDiff | PrepareMergeBack | StartMergeBack | Cleanup ]

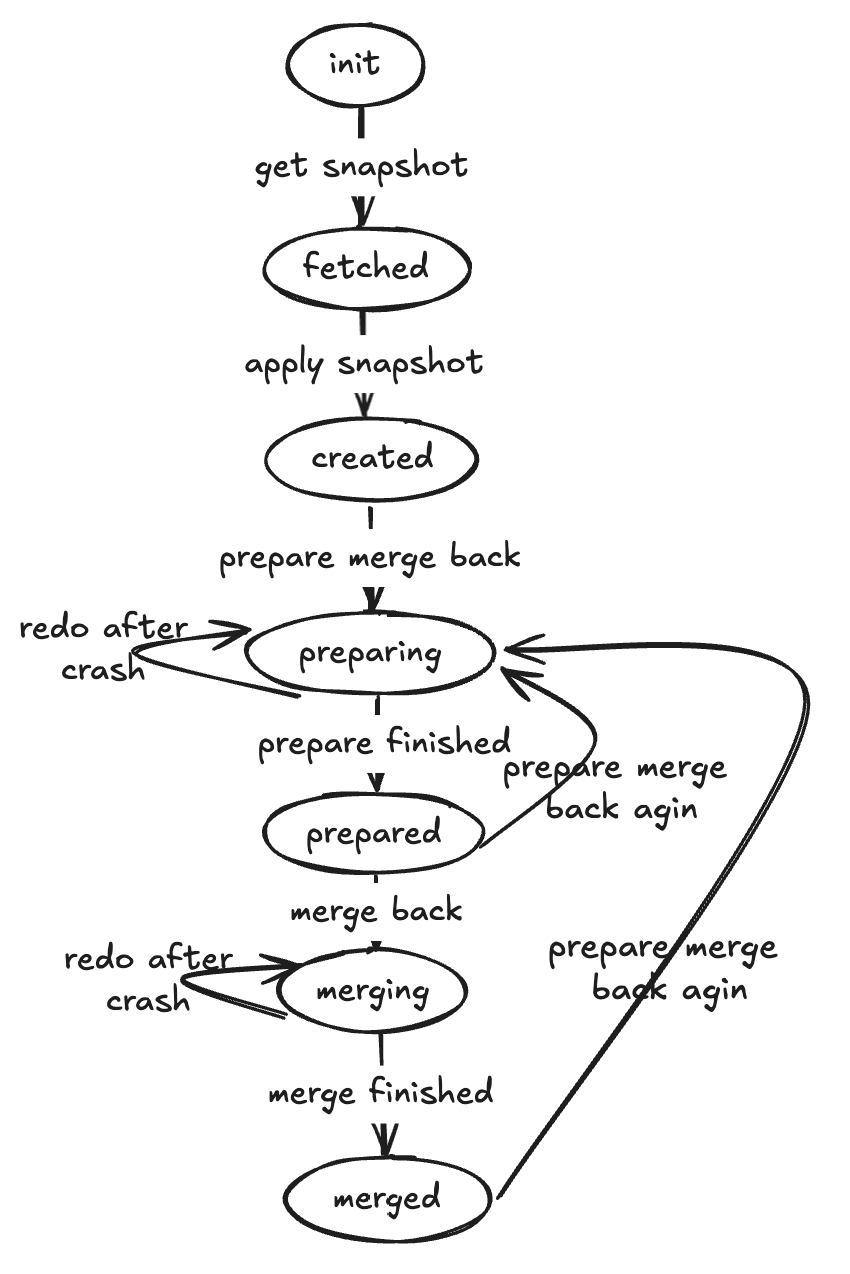

Actions Overview

Prepare: Initializes the branch workflow by copying the database schema from the source to the target database.
Start: Begins data streaming from the source to the target database.
Stop: Halts the data streaming process.
SchemaDiff: Displays differences between the source and target database schemas.
PrepareMergeBack: Prepares to merge schema changes from the target back to the source database.
StartMergeBack: Executes the merge of schema changes.
Cleanup: Cleans up the branch workflow

For a simple database copy, focus on the Prepare, PrepareMergeBack, StartMergeBack, and Cleanup commands.

Step1: Example Scenario Setup

Create Sample Tables

We'll use a sample environment to demonstrate the Branch feature. Execute the following commands to create the source database and tables:

CREATE DATABASE IF NOT EXISTS branch_source;

USE branch_source;

CREATE TABLE IF NOT EXISTS branch_source.user (
    id INT AUTO_INCREMENT PRIMARY KEY,
    name VARCHAR(255) NOT NULL
  ) ENGINE=InnoDB;

CREATE TABLE IF NOT EXISTS branch_source.customer (
    customer_id BIGINT NOT NULL AUTO_INCREMENT,
    email VARCHAR(128),
    PRIMARY KEY(customer_id)
  ) ENGINE=InnoDB;

CREATE TABLE IF NOT EXISTS branch_source.product (
    sku VARCHAR(128),
    description VARCHAR(128),
    price BIGINT,
    PRIMARY KEY(sku)
  ) ENGINE=InnoDB;

CREATE TABLE IF NOT EXISTS branch_source.corder (
    order_id BIGINT NOT NULL AUTO_INCREMENT,
    customer_id BIGINT,
    sku VARCHAR(128),
    price BIGINT,
    PRIMARY KEY(order_id)
  ) ENGINE=InnoDB;

Insert Sample Data

You can then insert some sample data into the tables:

-- Insert data into user table (500 rows)
INSERT INTO branch_source.user (name)
SELECT CONCAT('user_', n)
FROM (
    SELECT ROW_NUMBER() OVER () AS n
    FROM (SELECT 1 UNION SELECT 2 UNION SELECT 3 UNION SELECT 4 UNION SELECT 5) a
    CROSS JOIN (SELECT 1 UNION SELECT 2 UNION SELECT 3 UNION SELECT 4 UNION SELECT 5) b
    CROSS JOIN (SELECT 1 UNION SELECT 2 UNION SELECT 3 UNION SELECT 4 UNION SELECT 5) c
    CROSS JOIN (SELECT 1 UNION SELECT 2 UNION SELECT 3 UNION SELECT 4) d
) AS numbers
WHERE n <= 500;

-- Insert data into customer table (200 rows), linking to user table
INSERT INTO branch_source.customer (email, customer_id)
SELECT CONCAT('customer_', n, '@example.com'), n
FROM (
    SELECT ROW_NUMBER() OVER () AS n
    FROM (SELECT 1 UNION SELECT 2 UNION SELECT 3 UNION SELECT 4 UNION SELECT 5) a
    CROSS JOIN (SELECT 1 UNION SELECT 2 UNION SELECT 3 UNION SELECT 4 UNION SELECT 5) b
    CROSS JOIN (SELECT 1 UNION SELECT 2 UNION SELECT 3 UNION SELECT 4) c
    CROSS JOIN (SELECT 1 UNION SELECT 2 UNION SELECT 3 UNION SELECT 4) d
) AS numbers
WHERE n <= 200;

-- Insert data into product table (1000 rows)
INSERT INTO branch_source.product (sku, description, price)
SELECT CONCAT('sku_', n), CONCAT('product_', n), FLOOR(RAND() * 1000 + 1) -- Random price between 1 and 1000
FROM (
    SELECT ROW_NUMBER() OVER () AS n
    FROM (SELECT 1 UNION SELECT 2 UNION SELECT 3 UNION SELECT 4 UNION SELECT 5) a
    CROSS JOIN (SELECT 1 UNION SELECT 2 UNION SELECT 3 UNION SELECT 4 UNION SELECT 5) b
    CROSS JOIN (SELECT 1 UNION SELECT 2 UNION SELECT 3 UNION SELECT 4 UNION SELECT 5) c
    CROSS JOIN (SELECT 1 UNION SELECT 2 UNION SELECT 3 UNION SELECT 4) d
    CROSS JOIN (SELECT 1 UNION SELECT 2 UNION SELECT 3 UNION SELECT 4) e
) AS numbers
WHERE n <= 1000;

-- Insert data into corder table (10000 rows), linking to customer and product tables
INSERT INTO branch_source.corder (customer_id, sku, price)
SELECT c.customer_id, p.sku, p.price
FROM (
    SELECT ROW_NUMBER() OVER () AS n, customer_id
    FROM branch_source.customer
    ORDER BY RAND() -- Randomly select customers
) c
JOIN (
    SELECT ROW_NUMBER() OVER () AS n, sku, price
    FROM branch_source.product
    ORDER BY RAND() -- Randomly select products
) p ON (c.n % 1000) + 1 = p.n  -- Ensure every product is ordered
CROSS JOIN (SELECT 1 UNION SELECT 2 UNION SELECT 3 UNION SELECT 4 UNION SELECT 5 UNION SELECT 6 UNION SELECT 7 UNION SELECT 8 UNION SELECT 9 UNION SELECT 10) a
CROSS JOIN (SELECT 1 UNION SELECT 2 UNION SELECT 3 UNION SELECT 4 UNION SELECT 5) b
WHERE c.n <= 10000;

With the tables and data in place, you can now proceed with the Branch feature, or try out the sample queries provided in the Example Business Queries section.

Prepare Branch Command Client

We need to use vtctlclient to execute the Branch command.

If you are using kubernetes, you can enter the wesql-vtcontroller Pod to run the vtctlclient command:

$ kubectl get po
NAME                           READY   STATUS    RESTARTS      AGE
mycluster-wesql-0-0            2/2     Running   0             25m
mycluster-wesql-1-0            1/1     Running   1 (22m ago)   25m
mycluster-wesql-2-0            1/1     Running   1 (22m ago)   25m
wesql-vtcontroller-0           2/2     Running   0             25m
wesql-vtgate-87f69955c-h62nx   1/1     Running   0             25m
wesql-vtgate-87f69955c-t7lbg   1/1     Running   0             25m

$ kubectl exec -it wesql-vtcontroller-0 -c vtctld -- sh
/vt #    vtctlclient -v
WeScale version: 0.3.7 (git revision cb93f4e1dacce0882dde6ec27ee409c011684034 branch 'HEAD') built on Tue Oct 22 03:40:00 UTC 2024 by root@buildkitsandbox using go1.20.2 linux/amd64

If you are using docker, you can enter the wescale container to run the vtctlclient command:

ubuntu $ docker exec -it wescale bash
[root@3c089b5e14fc wesql-server]$
[root@3c089b5e14fc wesql-server]$   vtctlclient -v
WeScale version: 0.3.7 (git revision cb93f4e1dacce0882dde6ec27ee409c011684034 branch 'HEAD') built on Tue Oct 22 03:40:00 UTC 2024 by root@buildkitsandbox using go1.20.2 linux/amd64

Step2: Create a Branch Workflow

The Prepare action create a branch workflow by copying the schema from the source database to the target database.

Example

Let's copy the schema from the branch_source database to the branch_target database.

skip_copy_phase=false and stop_after_copy=false means that we'll copy both schema and data.

vtctlclient --server localhost:15999 Branch -- \
  --source_database branch_source \
  --target_database branch_target \
  --workflow_name branch_test \
  --skip_copy_phase=false \
  --stop_after_copy=false \
Prepare

Output:

successfully create branch workflow : branch_test sourceDatabase : branch_source targetDatabase : branch_target
rules :
[source_table:"corder" target_table:"corder" filtering_rule:"select * from corder " create_ddl:"copy" merge_ddl:"copy"]
[source_table:"customer" target_table:"customer" filtering_rule:"select * from customer " create_ddl:"copy" merge_ddl:"copy"]
[source_table:"product" target_table:"product" filtering_rule:"select * from product " create_ddl:"copy" merge_ddl:"copy"]
[source_table:"user" target_table:"user" filtering_rule:"select * from `user` " create_ddl:"copy" merge_ddl:"copy"]

The output shows that the branch workflow branch_test has been created. Now you can verify that the branch_target database has been created:

mysql> show databases;
+--------------------+
| Database           |
+--------------------+
| branch_source      |
| branch_target      |
| information_schema |
| mysql              |
| performance_schema |
| sys                |
+--------------------+
6 rows in set (0.00 sec)

Optional Parameters

For Advanced usage, you can use the following syntax:

Branch -- \
  --source_database=<source_database> \
  --target_database=<target_database> \
  --workflow_name=<workflow_name> \
  [--source_topo_url=<source_topo_url>] \
  [--tablet_types=<tablet_types>] \
  [--cells=<cells>] \
  [--include=<tables>] \
  [--exclude=<tables>] \
  [--skip_copy_phase=<true|false>] \
  [--stop_after_copy=<true|false>] \
  [--default_filter_rules=<filter_rule>] \
Prepare

Options

--source_database: Name of the source database.
--target_database: Name of the target database (created if it doesn't exist).
--workflow_name: Identifier for the branch workflow.
--source_topo_url: URL of the source cluster's topology server (defaults to local).
--tablet_types: Types of tablets to use as data sources (e.g., REPLICA, PRIMARY).
--include: Tables to include from the source database.
--exclude: Tables to exclude from the source database.
--skip_copy_phase: If true, only copies the schema without data.
--stop_after_copy: If true, stops data synchronization after the initial copy.
--default_filter_rules: Conditions to filter data during copying.

Step3: Data Streaming and Transformation

Once Prepare command is executed, you can define data transformation rules for each table in the mysql.branch_table_rules table. This allows you to filter, transform, or generate mock data before streaming it to the target database. All you need to do is update the filtering_rule column in the branch_table_rules table.

Example

UPDATE mysql.branch_table_rules
SET filtering_rule='SELECT id, gofakeit_generate(''{firstname}:###:???:{moviename}'') AS name FROM user'
WHERE source_table_name = 'user' and workflow_name='branch_test';

UPDATE mysql.branch_table_rules
SET filtering_rule='SELECT customer_id, gofakeit_bytype(''regex'', ''^[a-zA-Z0-9._%+-]+@[a-zA-Z0-9.-]+\.[a-zA-Z]{2,}$'') AS email FROM customer'
WHERE source_table_name = 'customer' and workflow_name='branch_test';

Step4: Start Data Streaming

Use the Start action to begin data streaming between the source and target databases. The target database applies ETL operations based on the defined filtering_rule.

Example

vtctlclient --server localhost:15999 Branch -- --workflow_name=branch_test Start

Output:

Start workflow: branch_test successfully.

Then you can insert some data into the source database and verify that it's copied to the target database. You can see that the data is transformed according to the rules defined in the branch_table_rules table.

Since gofakeit_generate(''{firstname}:###:???:{moviename}'') AS name is used for the user table, the name column is populated with random names. It's very convenient for generating mock data in the target branch for testing purposes.

For more information on gofakeit functions, see the Using gofakeit Functions in Data Streaming and Transformation section.

mysql> select * from branch_source.user;

mysql> select * from branch_target.user;

mysql> select * from branch_source.customer;

mysql> select * from branch_target.customer;

Syntax

Branch -- --workflow_name=${workflow_name} Start

Step5: Stop Data Streaming

The Stop action halts the data streaming process. Restart it later using the Start action if needed.

Example

vtctlclient --server localhost:15999 Branch -- --workflow_name branch_test Stop

Output:

Stop workflow: branch_test successfully.

Note: If stop_after_copy was set to true during the Prepare action and the data copy is complete, the Stop command will have no effect.

Syntax

Branch -- --workflow_name=${workflow_name} Stop

Step6: View Schema Differences

Use the SchemaDiff action to display differences between the source and target database schemas. This helps decide whether to merge schema changes back into the source database.

Example

Assuming you've made schema changes to the target database:

mysql> # Since OnlineDDL is enabled, it return the UUID of the OnlineDDL Job. OnlineDDL runs asynchronously, so you may need to wait for it to complete.
mysql> ALTER TABLE branch_target.product ADD COLUMN v2 INT;
+--------------------------------------+
| uuid                                 |
+--------------------------------------+
| 63ed2d8f_7c09_11ef_82e1_0aa7bf255933 |
+--------------------------------------+
1 row in set (0.02 sec)


mysql> # Since OnlineDDL is enabled, it return the UUID of the OnlineDDL Job. OnlineDDL runs asynchronously, so you may need to wait for it to complete.
mysql> ALTER TABLE branch_target.product ADD COLUMN v3 INT;
+--------------------------------------+
| uuid                                 |
+--------------------------------------+
| 67dd9224_7c09_11ef_82e1_0aa7bf255933 |
+--------------------------------------+
1 row in set (0.01 sec)

mysql> # Check the table schema and make sure the OnlineDDL is completed.
mysql> show create table branch_target.product\G
*************************** 1. row ***************************
       Table: product
Create Table: CREATE TABLE `product` (
  `sku` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL,
  `description` varchar(128) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci DEFAULT NULL,
  `price` bigint DEFAULT NULL,
  `v2` int DEFAULT NULL,
  `v3` int DEFAULT NULL,
  PRIMARY KEY (`sku`)
) ENGINE=SMARTENGINE DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_general_ci
1 row in set (0.01 sec)

Then run the SchemaDiff action to compare the source and target database schemas:

vtctlclient --server localhost:15999 Branch -- --workflow_name branch_test SchemaDiff --compare_objects=source_target --output_type=ddl

You can see that the target side has two additional columns v2 and v3 in the product table compared to the source side. Output:

The DDLs required to transform from the source schema to the target schema are as follows:
alter table product add column v2 int, add column v3 int

Syntax

Branch -- --workflow_name=${workflow_name} SchemaDiff \
[--compare_objects=<source_target|target_source|source_snapshot|snapshot_source|target_snapshot|snapshot_target>] \
[--output_type=<create_table|ddl|conflict>] \

compare_objects (default source_target)

source: Source schema, may be changed due to other branches merged.
target: Target schema.
snapshot: Snapshot of source schema when starting branch.

output_type (default create_table)

create_table: Show difference of create table SQLs of compare objects.
ddl: Show DDls used to convert from first compare object to second compare object.
conflict: Show whether schema of first compare object can be merged to schema of second compare object without conflicts.

Step7: PrepareMergeBack

The PrepareMergeBack action is a prerequisite for the StartMergeBack action. It generates DDL statements that will be executed at the source side, so that the schema changes made at the target side can be merged back to the source side.

Since product table on the target side has two additional columns v2 and v3, the DDL statement will be generated to add these two columns to the source side.

Example

vtctlclient --server localhost:15999 Branch -- --workflow_name branch_test PrepareMergeBack --merge_option=override

Output:

Table: product
DDL: ALTER TABLE `product` ADD COLUMN `v2` int, ADD COLUMN `v3` int
PrepareMergeBack (mergeOption=override) branch_test successfully

Syntax

Branch -- --workflow_name=${workflow_name} PrepareMergeBack \
[--merge_option=<override|diff>] \

merge_option (default override)

override: Override the source schema with the target schema and output the required DDL.
diff: Merge the target schema into the source schema and output the required DDL. You can use the SchemaDiff command to check for conflicts before merging.

Step8: StartMergeBack

Use the StartMergeBack action to execute the DDL statements generated during PrepareMergeBack, applying schema changes to the source database using an online strategy.

Example

vtctlclient --server localhost:15999 Branch -- --workflow_name branch_test StartMergeBack

Output:

StartMergeBack for 'branch_test' completed successfully. UUIDs:
[c057f330_b1e0_11ee_b7b2_5ea977d56bb7]

Monitor the progress of the Online DDL using the provided UUID:

mysql> SHOW SCHEMA_MIGRATION LIKE 'c057f330_b1e0_11ee_b7b2_5ea977d56bb7'\G

When the Online DDL task is complete, the schema of source table should be the same as that of target table.

mysql> desc branch_source.product;
+-------------+--------------+------+-----+---------+-------+
| Field       | Type         | Null | Key | Default | Extra |
+-------------+--------------+------+-----+---------+-------+
| sku         | varchar(128) | NO   | PRI | NULL    |       |
| description | varchar(128) | YES  |     | NULL    |       |
| price       | bigint       | YES  |     | NULL    |       |
| v2          | int          | YES  |     | NULL    |       |
| v3          | int          | YES  |     | NULL    |       |
+-------------+--------------+------+-----+---------+-------+
5 rows in set (0.005 sec)

Syntax

Branch -- --workflow_name=${workflow_name} StartMergeBack

Step9: Cleanup a Branch Workflow

The Cleanup action removes the metadata of branch workflow. The target database will not be deleted.

Example

vtctlclient --server localhost:15999 Branch -- --workflow_name branch_test Cleanup

Output:

Cleanup for workflow 'branch_test' completed successfully.

Syntax

Branch -- --workflow_name=${workflow_name} Cleanup

Appendix

Using `gofakeit` Functions in Data Streaming and Transformation

The Branch feature supports gofakeit_generate and gofakeit_bytype functions for data generation, compatible with MySQL data types. It only works with the Branch feature and is not available for general queries.

gofakeit_generate:

Generates random strings based on patterns. Refer to the gofakeit documentation for pattern syntax.

Example:

SELECT gofakeit_generate('{firstname} {lastname}') AS full_name;

gofakeit_bytype:

Generates random data based on specified types.

Supported Types and Usage

Type	Description	Example Usage
`tinyint`	Generates a random tiny integer.	`gofakeit_bytype('tinyint')`
`smallint`	Generates a random small integer.	`gofakeit_bytype('smallint')`
`mediumint`	Generates a random medium integer.	`gofakeit_bytype('mediumint')`
`int`	Generates a random integer.	`gofakeit_bytype('int')`
`integer`	Alias for `int`.	`gofakeit_bytype('integer')`
`bigint`	Generates a random big integer.	`gofakeit_bytype('bigint')`
`float`	Generates a random float.	`gofakeit_bytype('float')`
`double`	Generates a random double.	`gofakeit_bytype('double')`
`decimal`	Generates a random decimal.	`gofakeit_bytype('decimal', 5, 2)`
`date`	Generates a random date.	`gofakeit_bytype('date')`
`datetime`	Generates a random datetime.	`gofakeit_bytype('datetime')`
`timestamp`	Generates a random timestamp.	`gofakeit_bytype('timestamp')`
`time`	Generates a random time.	`gofakeit_bytype('time')`
`year`	Generates a random year.	`gofakeit_bytype('year')`
`floatrange`	Generates a random float within a specified range.	`gofakeit_bytype('floatrange', 1.5, 10.0)`
`intrange`	Generates a random integer within a range.	`gofakeit_bytype('intrange', 100, 200)`
`name`	Generates a random name.	`gofakeit_bytype('name')`
`address`	Generates a random address.	`gofakeit_bytype('address')`
`uuid`	Generates a random UUID.	`gofakeit_bytype('uuid')`
`regex`	Generates a string matching a regex pattern.	`gofakeit_bytype('regex', '[A-Z]{5}')`

Example:

SELECT gofakeit_bytype('intrange', 1, 100) AS random_number;

Example Business Queries

Here are some example queries that demonstrate typical business use cases for the given tables, along with explanations:

1. Find the top 5 customers by total order value:

SELECT c.customer_id, c.email, SUM(co.price) AS total_spent
FROM branch_source.customer c
JOIN branch_source.corder co ON c.customer_id = co.customer_id
GROUP BY c.customer_id, c.email
ORDER BY total_spent DESC
LIMIT 5;

2. Find the most popular product (most frequently ordered):

SELECT p.sku, p.description, COUNT(co.order_id) AS order_count
FROM branch_source.product p
JOIN branch_source.corder co ON p.sku = co.sku
GROUP BY p.sku, p.description
ORDER BY order_count DESC
LIMIT 1;

3. Find all orders made by a specific customer:

SELECT co.order_id, co.sku, co.price
FROM branch_source.corder co
WHERE co.customer_id = 123; -- Replace 123 with the desired customer ID

4. Find the average order value:

SELECT AVG(price) AS average_order_value
FROM branch_source.corder;

5. Total revenue for the most popular product:

SELECT SUM(co.price) AS total_revenue
FROM branch_source.corder co
WHERE co.sku = (SELECT sku FROM branch_source.corder GROUP BY sku ORDER BY COUNT(*) DESC LIMIT 1);

Branch

Overview​

General Syntax​

Actions Overview​

Step1: Example Scenario Setup​

Create Sample Tables​

Insert Sample Data​

Prepare Branch Command Client​

Step2: Create a Branch Workflow​

Example​

Optional Parameters​

Step3: Data Streaming and Transformation​

Example​

Step4: Start Data Streaming​

Example​

Step5: Stop Data Streaming​

Example​

Step6: View Schema Differences​

Example​

Step7: PrepareMergeBack​

Example​

Step8: StartMergeBack​

Example​

Step9: Cleanup a Branch Workflow​

Example​

Appendix​

Using gofakeit Functions in Data Streaming and Transformation​

Supported Types and Usage​

Example Business Queries​

Overview

General Syntax

Actions Overview

Step1: Example Scenario Setup

Create Sample Tables

Insert Sample Data

Prepare Branch Command Client

Step2: Create a Branch Workflow

Example

Optional Parameters

Step3: Data Streaming and Transformation

Example

Step4: Start Data Streaming

Example

Step5: Stop Data Streaming

Example

Step6: View Schema Differences

Example

Step7: PrepareMergeBack

Example

Step8: StartMergeBack

Example

Step9: Cleanup a Branch Workflow

Example

Appendix

Using `gofakeit` Functions in Data Streaming and Transformation

Supported Types and Usage

Example Business Queries
